DFT Sqaure Tube Forming Line

  1. Summery:
    This mill uses directly rolled into square tubes forming technology, which is specially for high standard customer used in precision cold rolled forming mill. The main machine adopts PLC control and full digital speed control system, with technology of no roll changing. The changing time is about 15-20 minutes.

  2. Porcessing:
    Coiling→ uncoiler→ straighter and pinching&leveling →shearing heads and tail→ butt-welding →accumulator→forming →HF welding →outside deburring →water cooling →sizing →cut to length →rail after cutting →collection

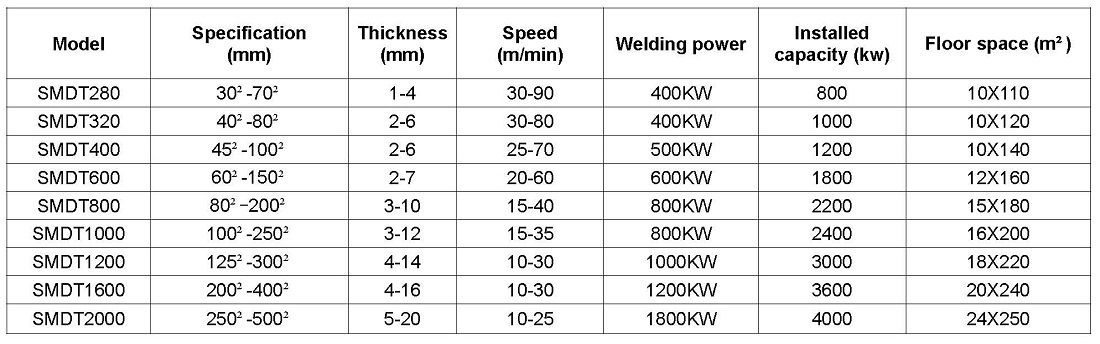

DFT mill list

Custom Design with All Automatic control

We supply custom design for your request with all automatic PLC control from 30x30--500x500

High efficiency and high capacity

Only need 3-4 persons operating in the line

And No need different roller for each pipe size, one set roller producing all square tube

Great flexibility

Chaning Pipe Size time is only of 20-30 minutes

Intelligent control

All the different pipe size chaning by PLC, no need do it by manual, there isPipe size database in PLC.


All lift service

DFT Square tube forming line Layout Drawing
